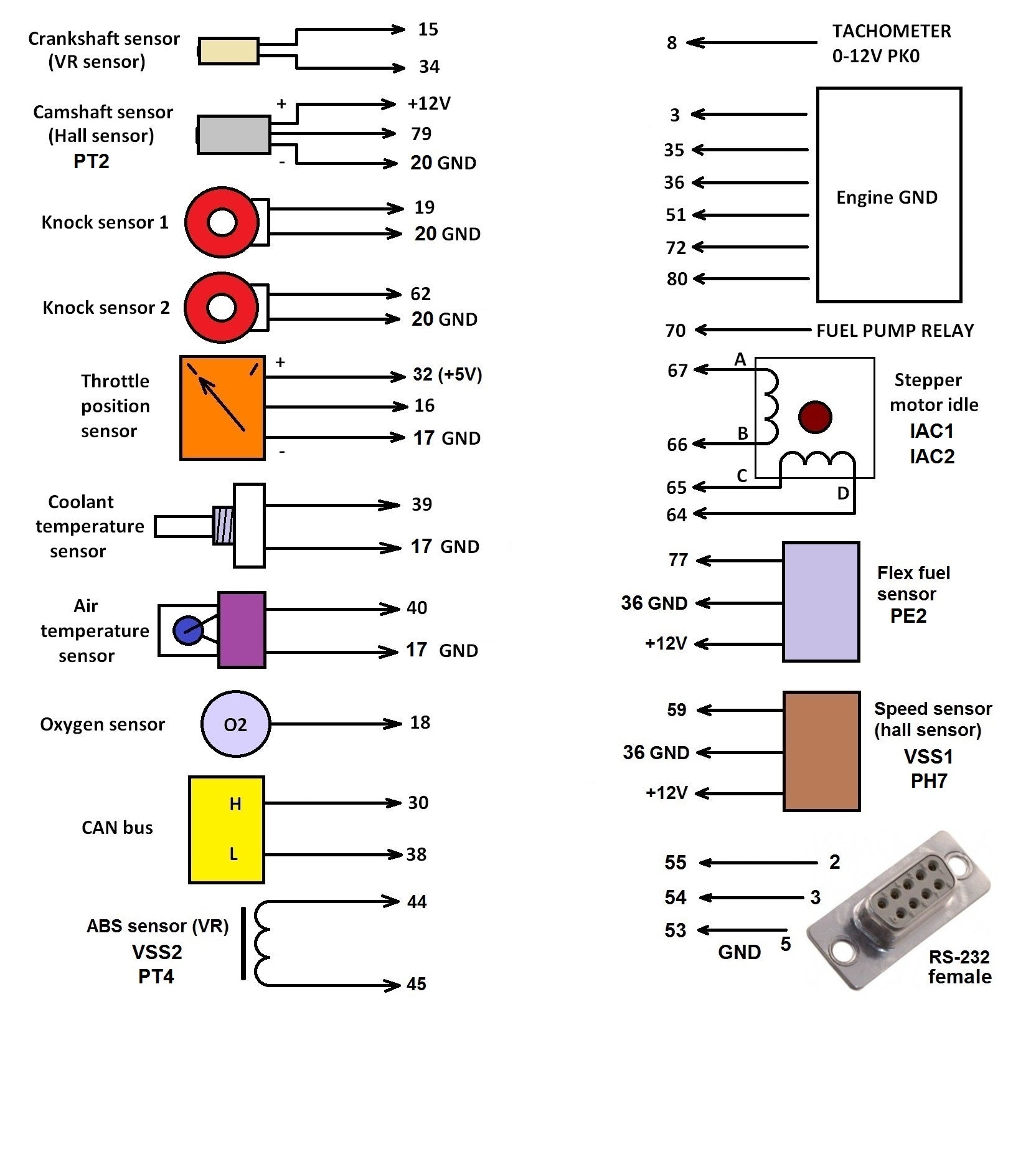

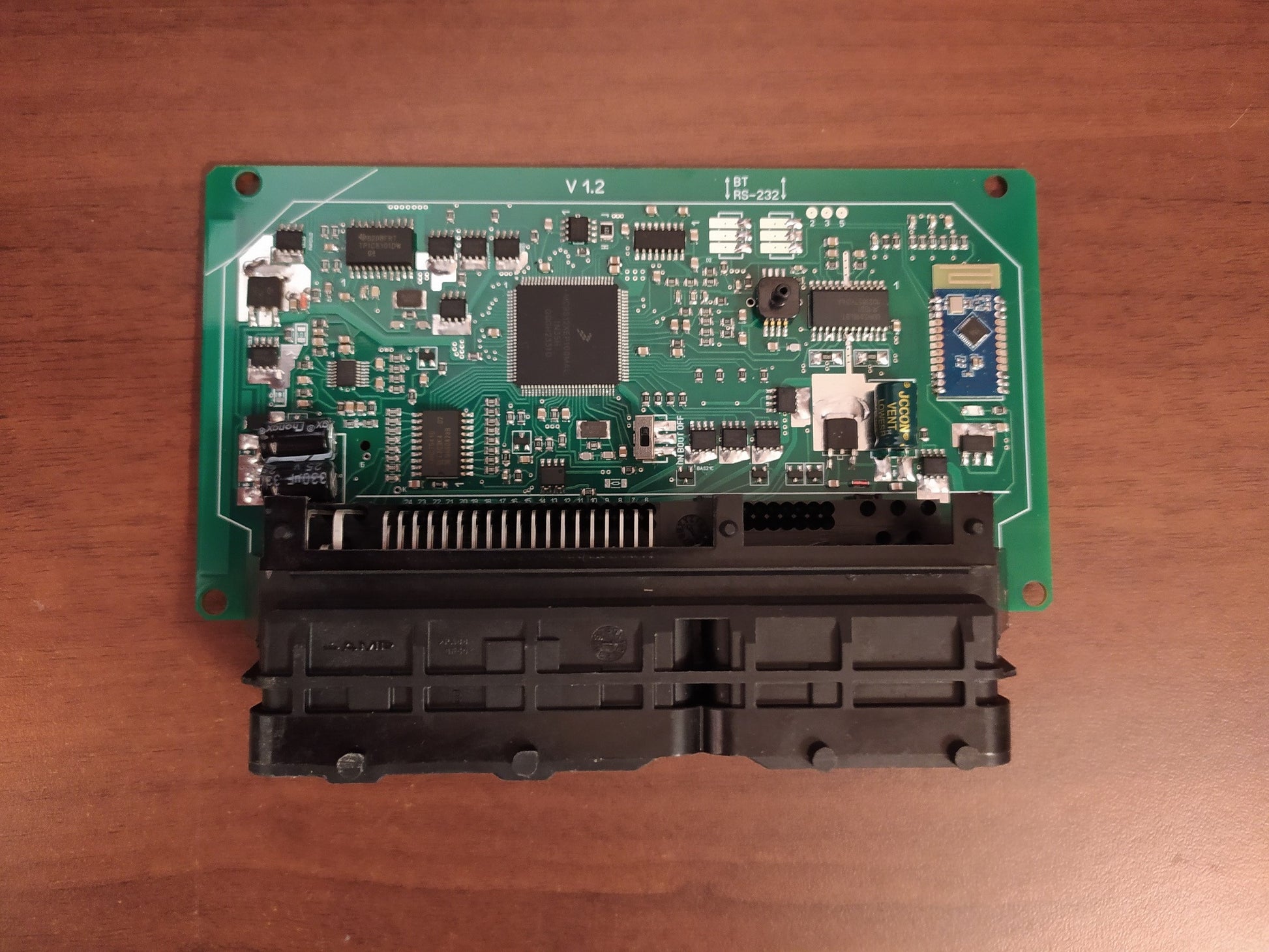

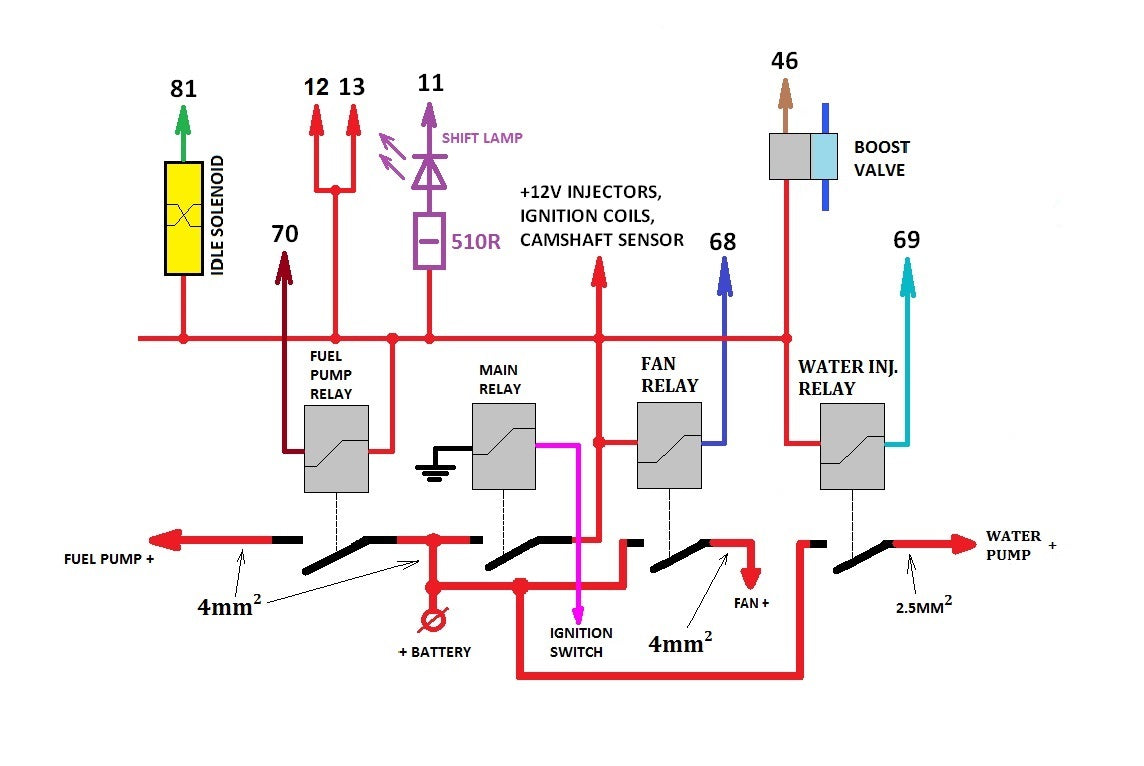

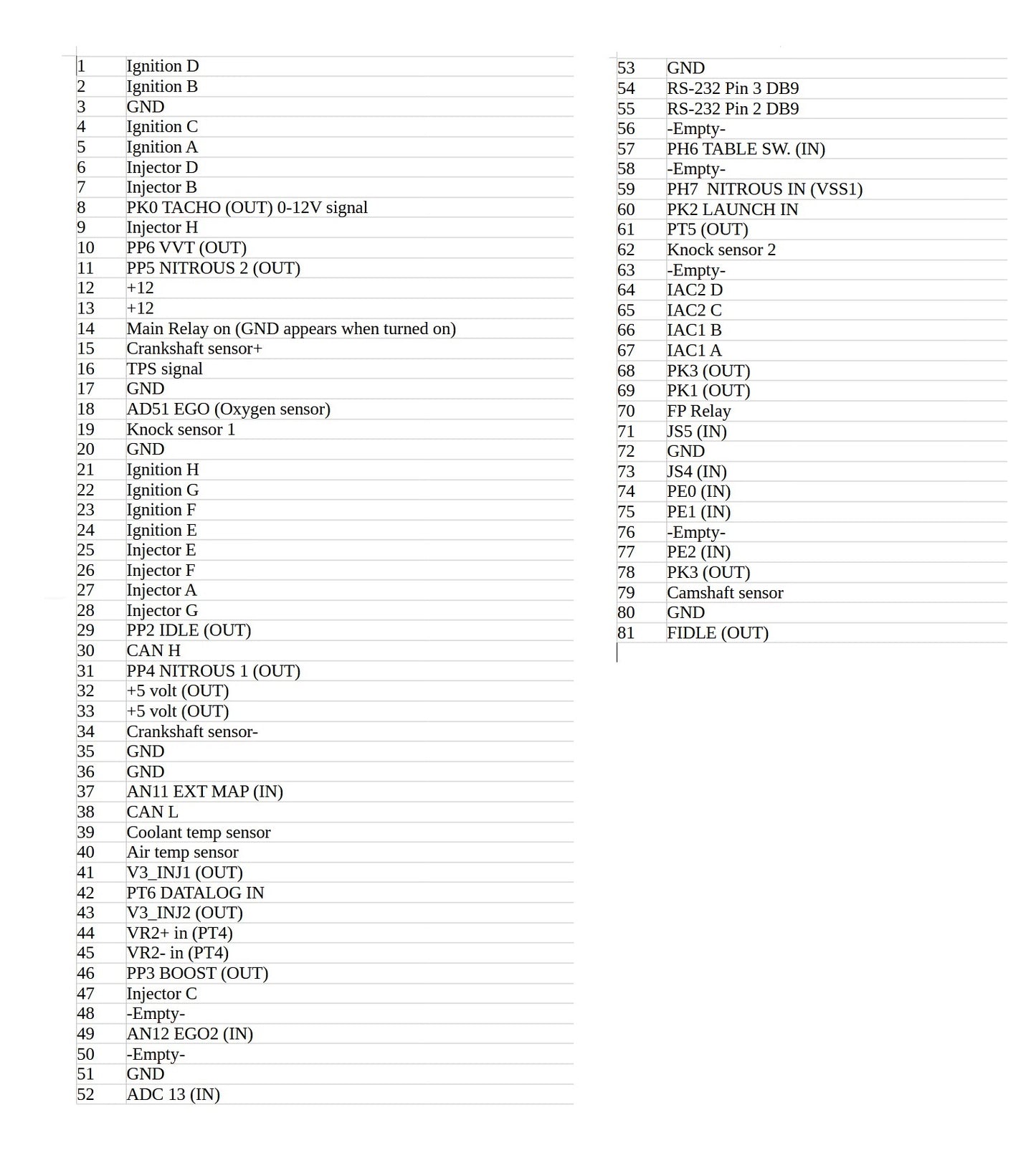

Custom megasquirt 3 for standard Bosch 81-pin connector. Has a built-in MAP sensor 3 bar boost. Crankshaft sensor - VR sensor, camshaft sensor - Hall sensor. Built-in two speed sensor inputs for implementing traction control (one input for the Hall sensor, the second for the VR sensor). Two inputs for knock sensors. Can control an idle stepper motor. Ignition coil outputs are logical 0-5V (red vag coils fit). All provided inputs and outputs are present. The body has minor abrasions, as it was taken from a used Bosch ECU. Communication with a laptop via Bluetooth or a RS-232 port (the wire on top is the bluetooth antenna. Bluetooth is enabled by default). Tested. Ask questions: awd.400@gmail.com Worldwide shipping. Delivery may take 3-4 weeks.
