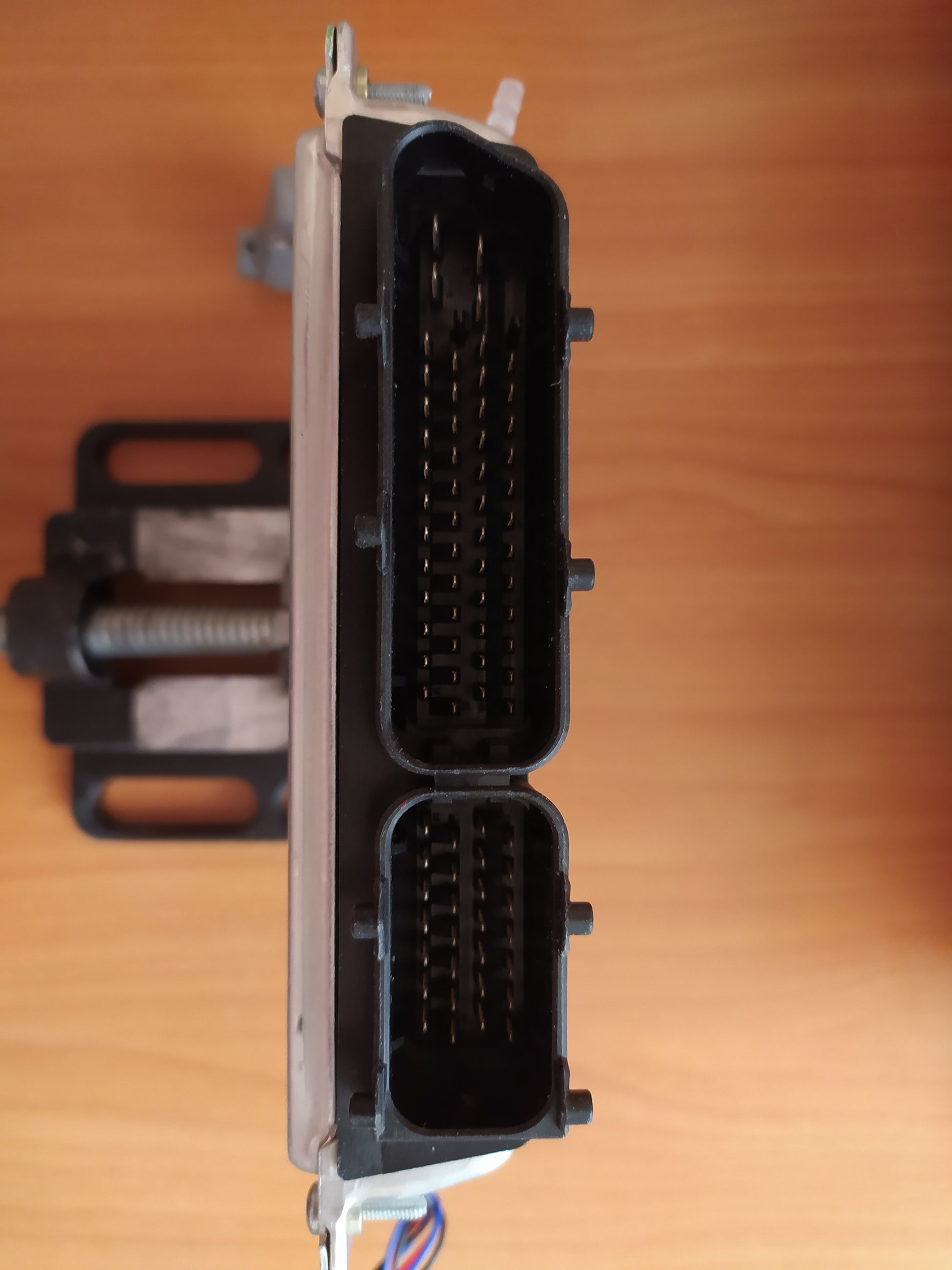

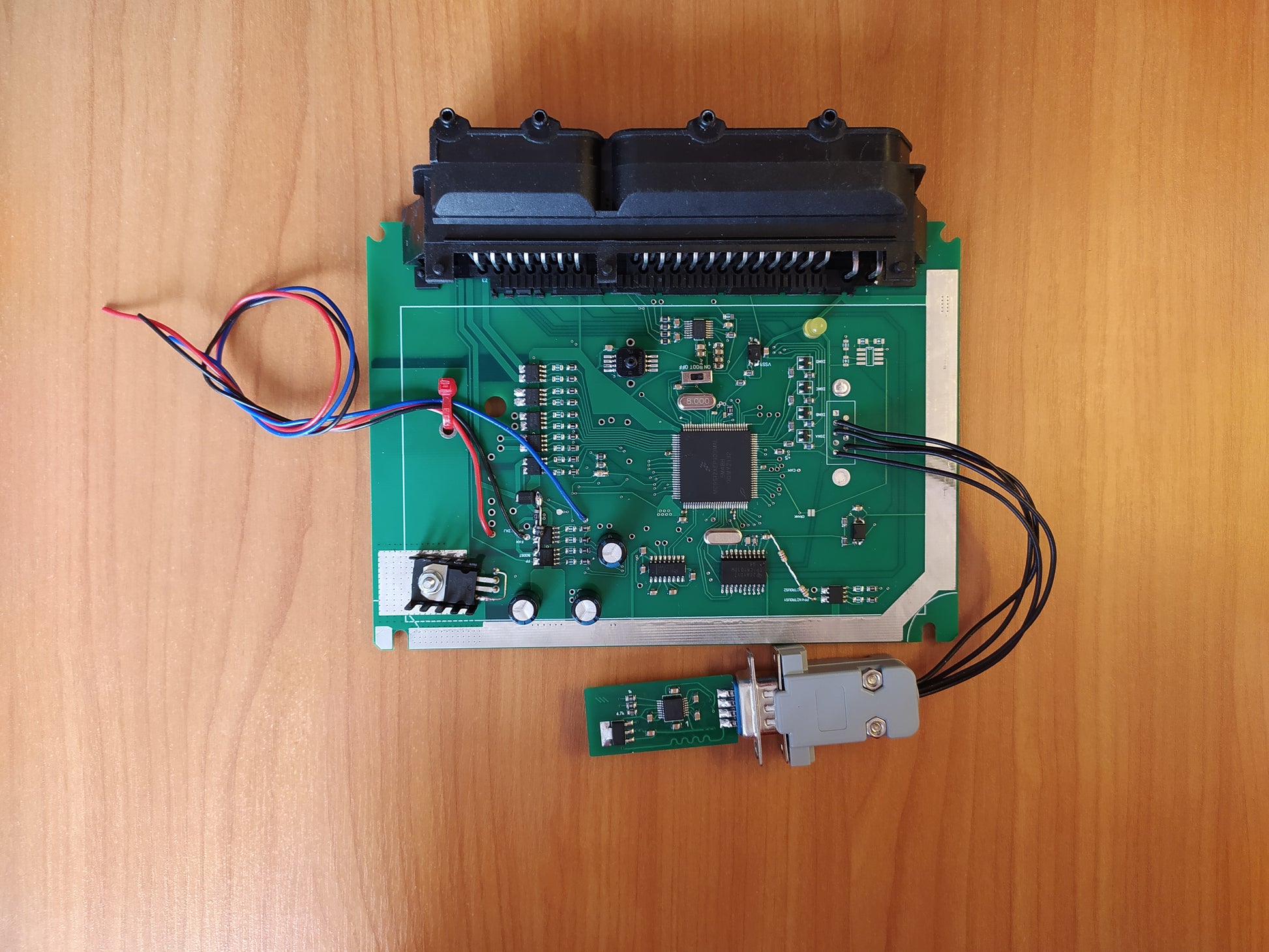

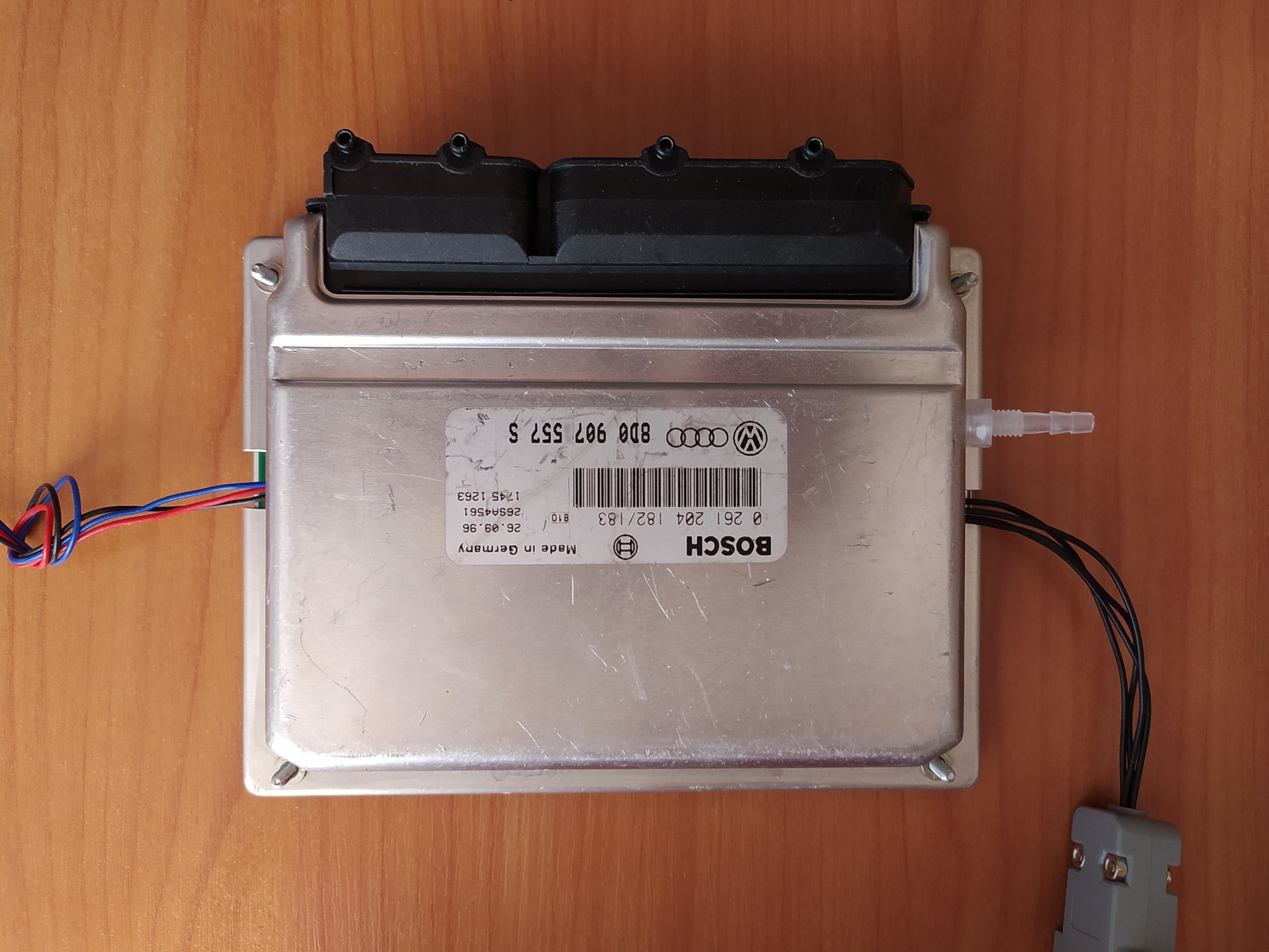

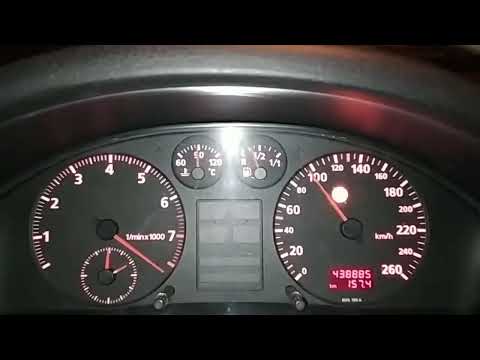

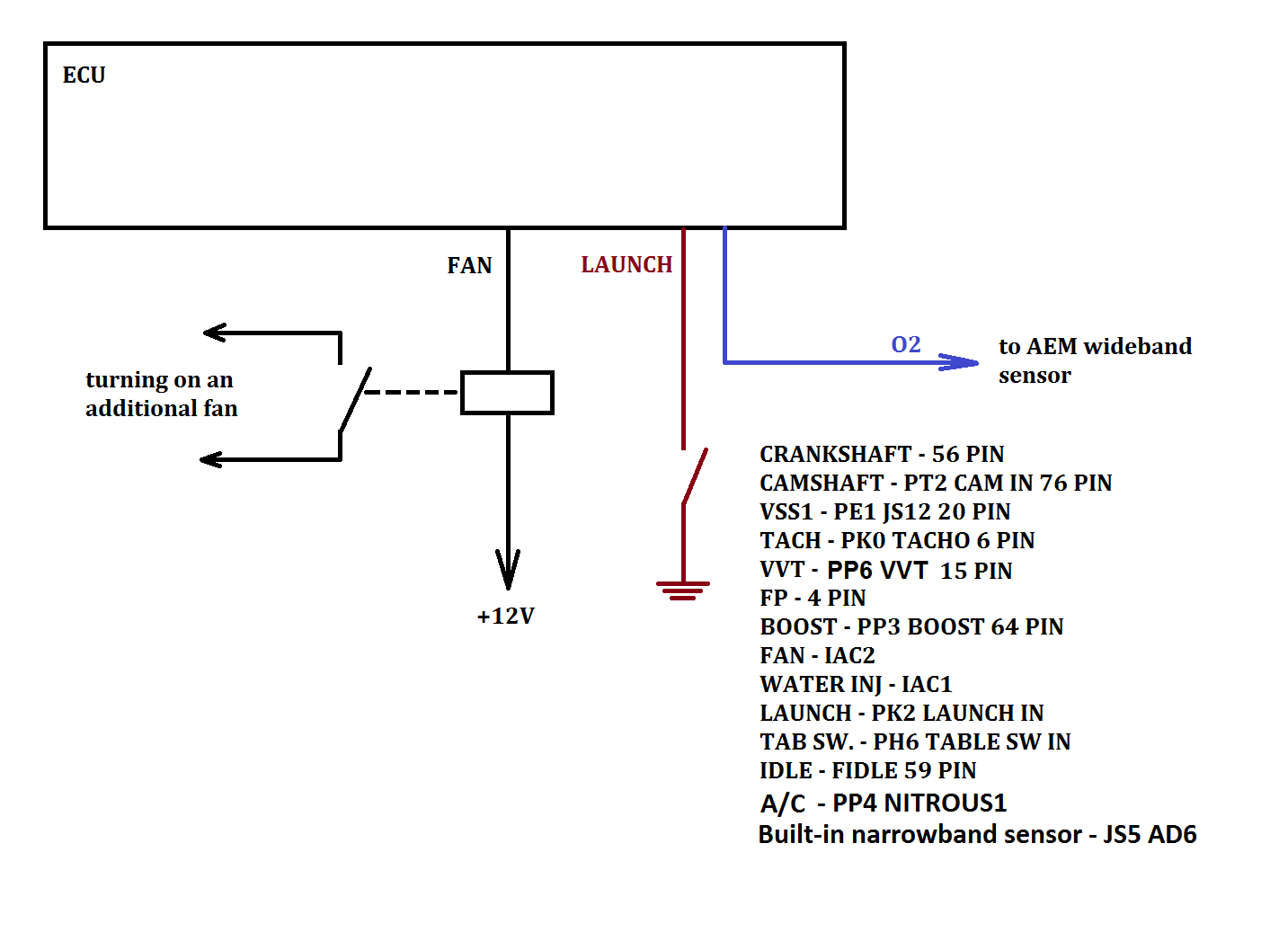

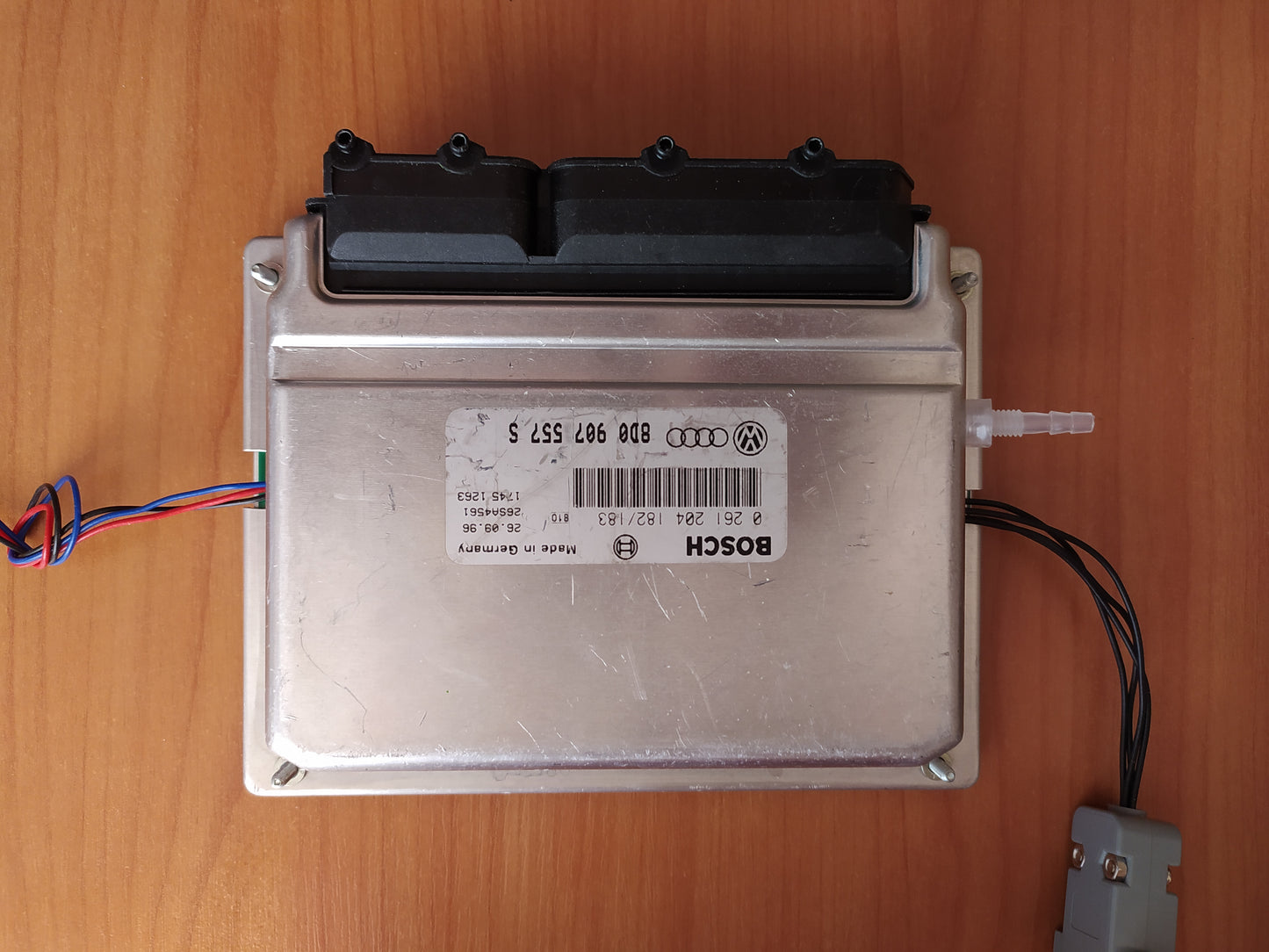

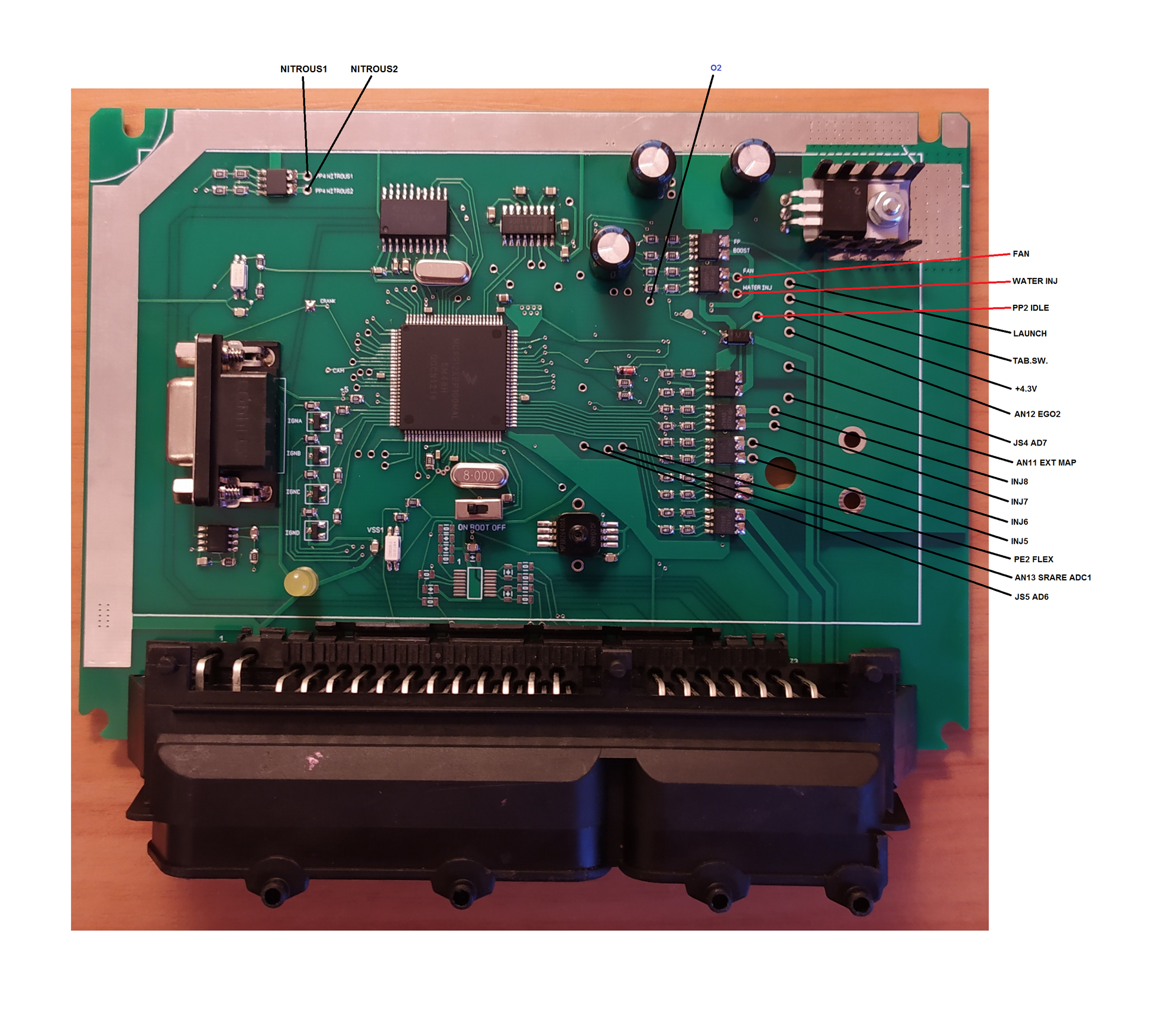

This is a megasquirt 3 made specifically for the Audi A4 with an AEB engine and a manual transmission. This ECU is installed instead of the factory one. The ECU is configured and tested on my Audi A4. MAP sensor 3 bar excess. Allows you to change gears without releasing the gas pedal - without losing boost (flat shift). Also launch control is available, as well as many additional functions. The connector for controlling the carbon canister can be used to control the VVT valve (if you install it). To start your car, you need to adjust the performance of the injectors (I used a fuel pressure regulator 3 bar and 800cc injectors). The tachometer works, the ECU sees the speed of the car, both knock sensors work, idle speed adjustment works, boost adjustment using an OEM valve n75 works. Additional inputs and outputs are present. For configuration, you will need a wideband AEM sensor. To communicate with a laptop, a RS-232 port or a Bluetooth module (included) is used so as not to pull wires into the hood. You can install red coils from Audi R8, the ECU is fully compatible. Some parts may differ from the photo, as improvement is ongoing. Shipping is included in the price and can take 2-4 weeks. Tracking number will be provided. You can always write to me by email. awd.400@gmail.com Free shipping.
